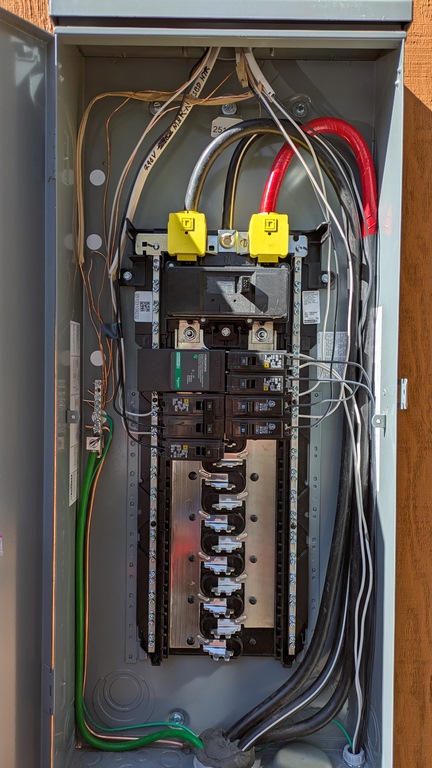

This was the state of the new outside circuit breaker panel after I added 5-9 (240V heater + 3 light circuits), before replacing the front cover. Note that for some reason the electrician only started with a 9-screw ground bar on the left. Next trip up I gotta replace that with a maxed out 23-screw bar.

Circuit 9 was 4 more lights I enabled on an entry door switch in about 2.5 hours before we went home the last day! Extra credit, went well except I broke and must replace the triple-switch cover plate. And forgot to take a couple more pictures.
